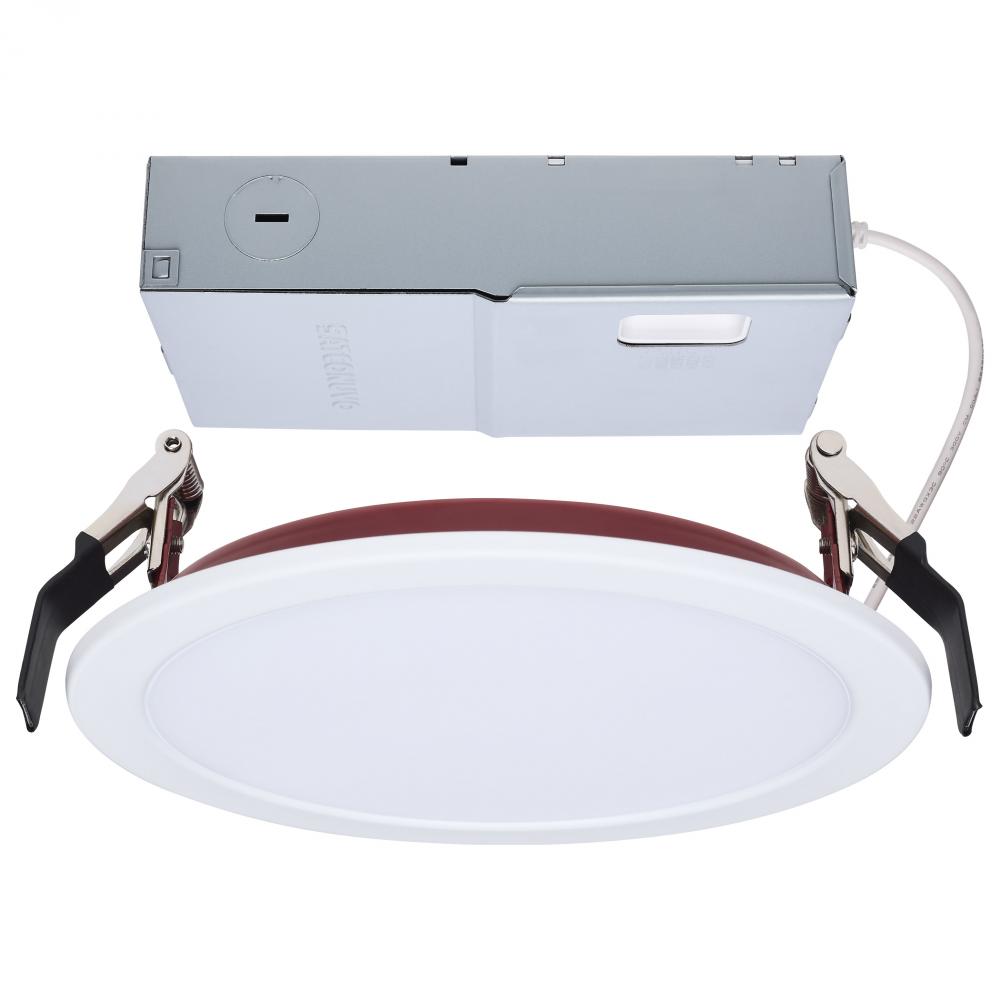

13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; (X9P5R)

13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; 0-10V Dimmable

Product Specification

Item #

X9P5R

Dimensions

Height: 0.88"

Width: 6.79"

Additional product details

Category

Recessed

Sub Category

Direct Wire

Style

Specialty

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

6.79

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.6010

Lumens

1100L

Ship Carton Height

7.48

Ship Carton Length

7.87

Ship Carton Width

2.95

Warranty

5-Years

Air Tight

Yes

Amps

0.108-0.047A

ANSI Base

Integrated

BAA Compliant

Beam Spread

110

CA Prop-65

Lead

Carton Cubic Feet

0.1005

Cartons Per Unit

CCT Selectable

Yes

CEC Terse

Lawful for sale in California

Ceiling Aperture

5.875 in. Cutout

Closet Rated

Yes

Connection

Hardwire

Country Of Origin

Cambodia

CRI

90+

Dark Sky Rated

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming

Efficacy

84.62 LPW

ES Category

Downlight Recessed

ES Unique ID

4479605

FCC Compliant

Yes

Feature 1

Fire rated up to 2-hours

Feature 10

5 Year Warranty

Feature 2

Red painted backplate for easy identification

Feature 3

5 CCT Selectable

Feature 4

90 CRI High Quality Illumination

Feature 5

6" Flat Lens Model

Feature 6

120–277 Volts with 0–10V Dimming

Feature 7

Wet Location Rated

Feature 8

IC Rated and AirTight

Feature 9

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Round

Flicker Free

Yes

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frosted

Lens Material

Polycarbonate (PC)

Long Description

SATCO NUVO'S S11869R1 Fire Rated Recessed Downlight is engineered for fire-resistant ceiling construction and certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556,

Material

Steel

Max Drywall Thickness

1.181 in.

Mounting Procedure

Ceiling

NSF Approved

Operating Frequency

50/60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Color Box

Power Factor

>0.9

Quantity In Pack

Rated For Vapor Tight Fixture

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO'S Fire Rated Recessed Downlights are engineered for use in fire-resistant ceiling construction and are certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L

Safety Listing

cULus - Certified

SDS class

LED_Fixture

Short Description

13WLED/6/CFR/CCT/SLF/RD/FL/RND

Sloped Ceiling Compatible

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Color

White

Trim Material

Steel

Wattage Selectable

Weight Lb.

1.82

Finish
