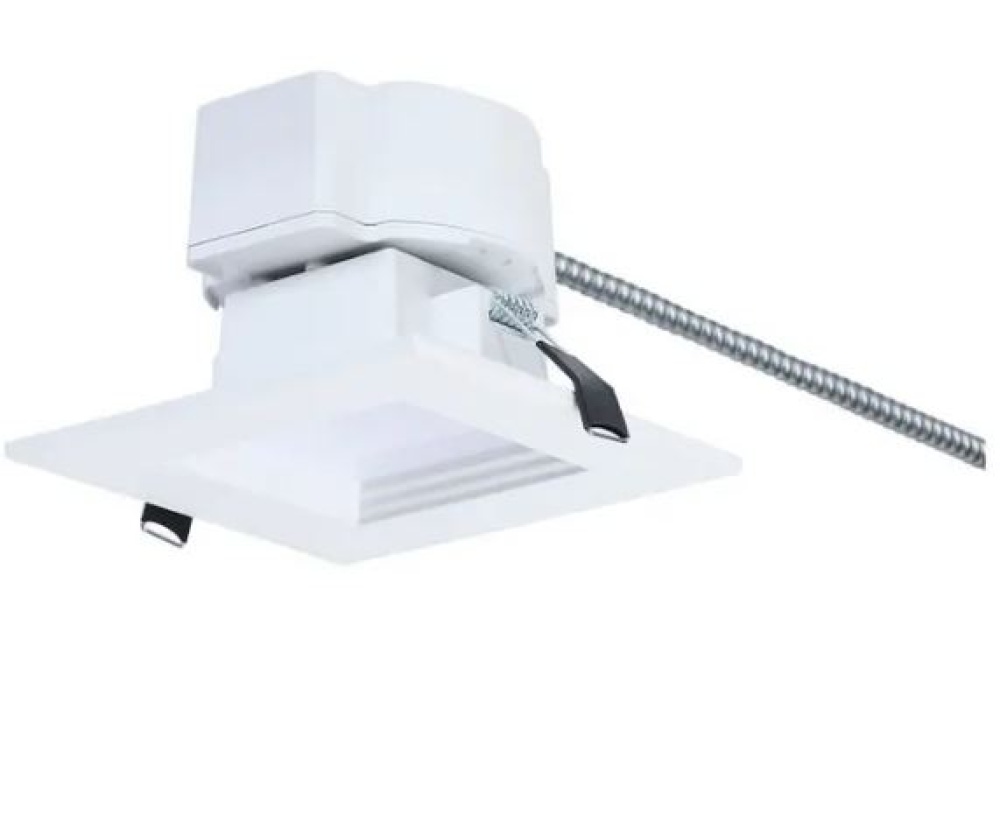

13.5W Field Selectable LED 4-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt (AD6J7)

13.5W Field Selectable LED 4-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt

Product Specification

Item #

AD6J7

Dimensions

Height: 3.23"

Width: 4.92"

Additional product details

Category

Recessed

Sub Category

Commercial

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White to Natural Light

Dimmable

Yes-Dimmable

Each Height

7.09

Each Length

5.51

Each Width

4.33

Length

4.92

Lumens

1200L/1000L/800L

Tariff Code

9405.42.6000

Warranty

5-Years

Air Tight

Yes

Amps

0.113-0.039/0.100-0.035/0.089-0.031A

ANSI Base

Integrated

BAA Compliant

Beam Angle

CA Prop-65

Lead

CCT Selectable

Yes

CEC Terse

Lawful for sale in California

Closet Rated

Connection

Hardwire

Country Of Origin

Thailand

CRI

90+

Dimmable Down To

100 to 10 percent

Dimmable Function

Phase Cut at 120V/0-10V at 120-347V

Dimming Type

Dual Dimming

Each Cube

0.0979

Each Quantity

Efficacy

88.89 LPW

ES Category

Downlight Recessed

ES Unique ID

4481352

FCC Compliant

Yes

Feature 1

Field Selectable - 5 CCT and 3 Wattage

Feature 10

5 Year Warranty

Feature 2

4-Inch Square, Standard Model

Feature 3

Dual Dimming

Feature 4

Regress Baffle Design for Reduced Glare

Feature 5

18 Inch Electrical Whip

Feature 6

Integrated LED Driver

Feature 7

90 CRI

Feature 8

Damp location rated

Feature 9

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Square

Flr Equiv

18W

Has Camera

Has Driver

Yes

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Yes

Lens Material

Polycarbonate (PC)

Long Description

SATCO NUVO's Plus Series LED Commercial Downlight, S21608, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 4-inch square fixture features field-selectable wattage and CCT settin

Material

Aluminum

Mounting Height

3.08

Mounting Length

4.17

Mounting Procedure

Ceiling

Mounting Width

4.17

NSF Approved

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Color Box

Photocell

Power Factor

>0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

13.5W/CDL/4/120-347/FS/SQ/DD

Sloped Ceiling Compatible

Specification Notes

Default CCT setting is 3000K. Default wattage setting is 13.5W.

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<30%

Trim Color

White

Trim Material

Aluminum

Up Down Installation

Down

Wattage Selectable

Yes

Weight Lb.

0.89

Finish
