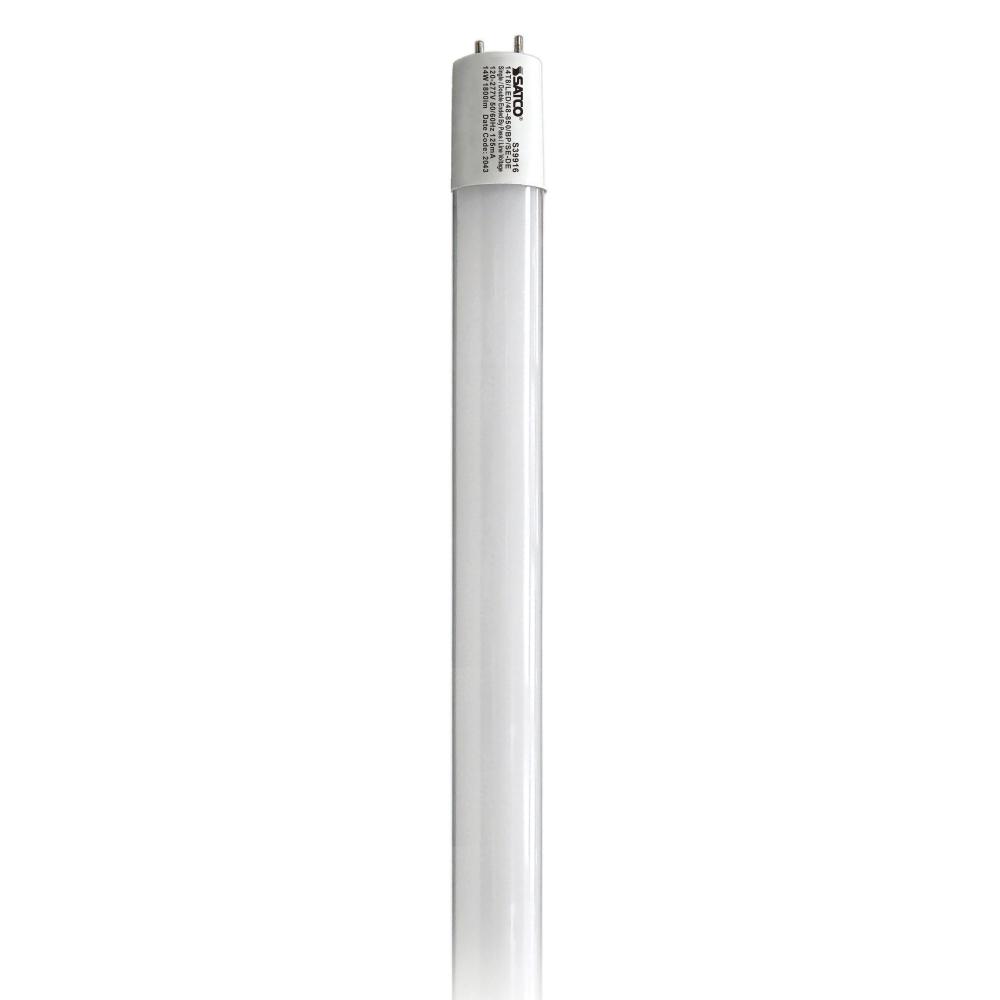

14 Watt T8 LED; 4Ft; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Type B;
Image may not reflect selected features
/vendors/27/large/S39916.jpg
additional image
additional image
additional image
additional image
additional image
14 Watt T8 LED; 4Ft; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Type B; (LVG8X)
14 Watt T8 LED; 4Ft; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring
Product Specification
Item #
LVG8X
Dimensions
Width: 1.10"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
1601-2600
Kelvin
4501-5000
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
T8
Diameter
1.1
EA Length
1.1
Harmonized Codes
8539.52.0051
Length
47.78
Lumens
1800L
Shap Carton Width
1.1
Ship Carton Height
48
Ship Weight
0.58
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.43
Additional Info
Equivalent CCT selectable option available in S11766
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
210
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Gloss White
Burning Position
Universal
Carton Cubic Feet
0.0336
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
82
DLC Approved
Yes
DLC Classification
Standard
DLC ID
PL5U5EECCTSI
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
128.57 LPW
FCC Compliant
Yes
Feature 1
MOL: 47.78 inches, MOD: 1.10 inches
Feature 2
Gloss White Finish
Feature 3
Medium Bi Pin Base
Feature 4
5000K Natural White Light
Feature 5
Rated for 50,000 hours
Feature 6
1800 lumens
Feature 7
210 degree beam spread
Feature 8
FCC and RoHS Compliant
Feature 9
5-year limited warranty
Flourescent Equivalent
32W
Housing Color
White
Incandescent Equivalent
75W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Lamp Filament
LED
Lens Finish
Gloss White
Lens Material
Glass
Location Rating
Damp
Long Description
SATCO|NUVO's S39916 14-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this
Material
Glass
Nominal Length
48
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
R9 Value
7
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 14-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this lamp d
SDS class
LED_Lamp
Short Description
14T8/LED/48-850/BP/SE-DE
Specification Notes
Built-in shock resistant circuit - (not hot until both ends are installed)
Style
Utility
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
20%
Tube Guard Use
Yes
Wattage Selectable
No
Watts
14W
Finish Family
Additional options that would change other selections
