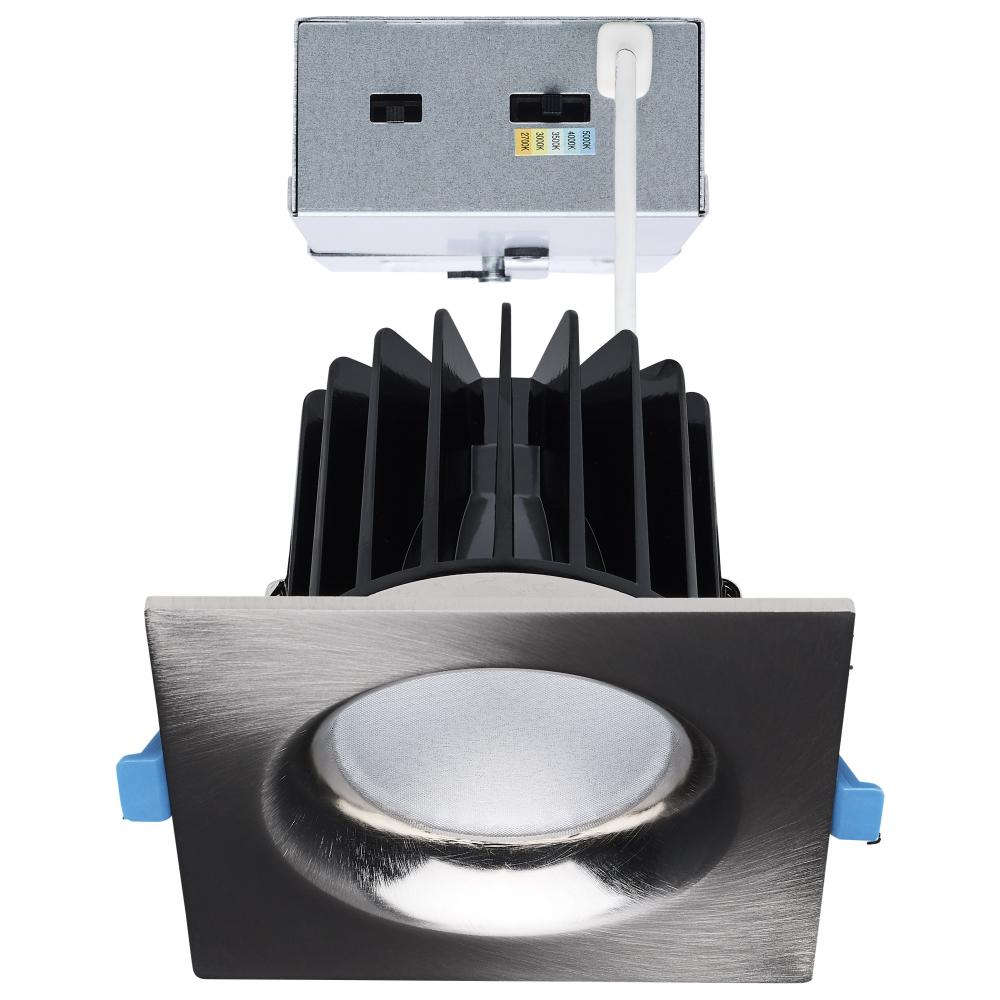

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; (X9M7Y)

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; Brushed Nickel Finish; Dual Dimming; 120-277 Volt

Product Specification

Item #

X9M7Y

Dimensions

Height: 3.62"

Width: 4.80"

Additional product details

Category

Recessed

Sub Category

Direct Wire

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.6010

Length

4.8

Lumens

1300L/1600L/2000L

Ship Carton Height

6.69

Ship Carton Length

10.04

Ship Carton Width

5.31

Warranty

5-Years

Air Tight

Yes

Amps

0.133-0.058/0.167-0.072/0.200-0.087A

ANSI Base

Integrated

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

3 in.

Carton Cubic Feet

0.2064

Cartons Per Unit

CCT Selectable

Yes

CEC Terse

Lawful for sale in California

Closet Rated

Yes

Connection

Direct Wired

Country Of Origin

Thailand

CRI

90+

Dimmable Down To

100 to 10 percent

Dimmable Function

Dual Dimming: Phase-Cut and 0-10V

Dimming Type

Dual Dimming

Efficacy

81.25/80.00/83.33 LPW

ES Category

Downlight Recessed

ES Unique ID

3999678

FCC Compliant

Yes

Feature 1

Square Trim, Brushed Nickel Finish

Feature 10

NEC Compliant Junction Box

Feature 2

High Output: 1300/1600/2000 Lumens

Feature 3

16W/20W/24W Wattage Selectable (125W Replacement)

Feature 4

2700K/3000K/3500K/4000K/5000K CCT Selectable

Feature 5

Dual-Dimming

Feature 6

90 CRI

Feature 7

40-Degree Beam Angle

Feature 8

Aluminum Trim with Polycarbonate Lens

Feature 9

FT6 Cable Included for Commercial Plenums

Finish Family

Brushed Nickel

Fixture shape

Square

Has Camera

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

125W

Indoor Outdoor

Indoor

IOT Enabled

JA8 Compliant

Yes

Lens Finish

Clear Prismatic

Lens Material

Polycarbonate (PC)

Long Description

SATCO NUVO S11675 LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose

Material

Aluminum

Mounting Diameter

3.62

Mounting Height

Mounting Procedure

Recessed Direct Wire

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

50/60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose from th

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

24WLED/DW/DNL3/FS/SQ/DD/BN

Sloped Ceiling Compatible

Specification Notes

Default wattage setting: 20W

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Material

Aluminum

Wattage Selectable

Yes

Weight Lb.

2.2

Finish
