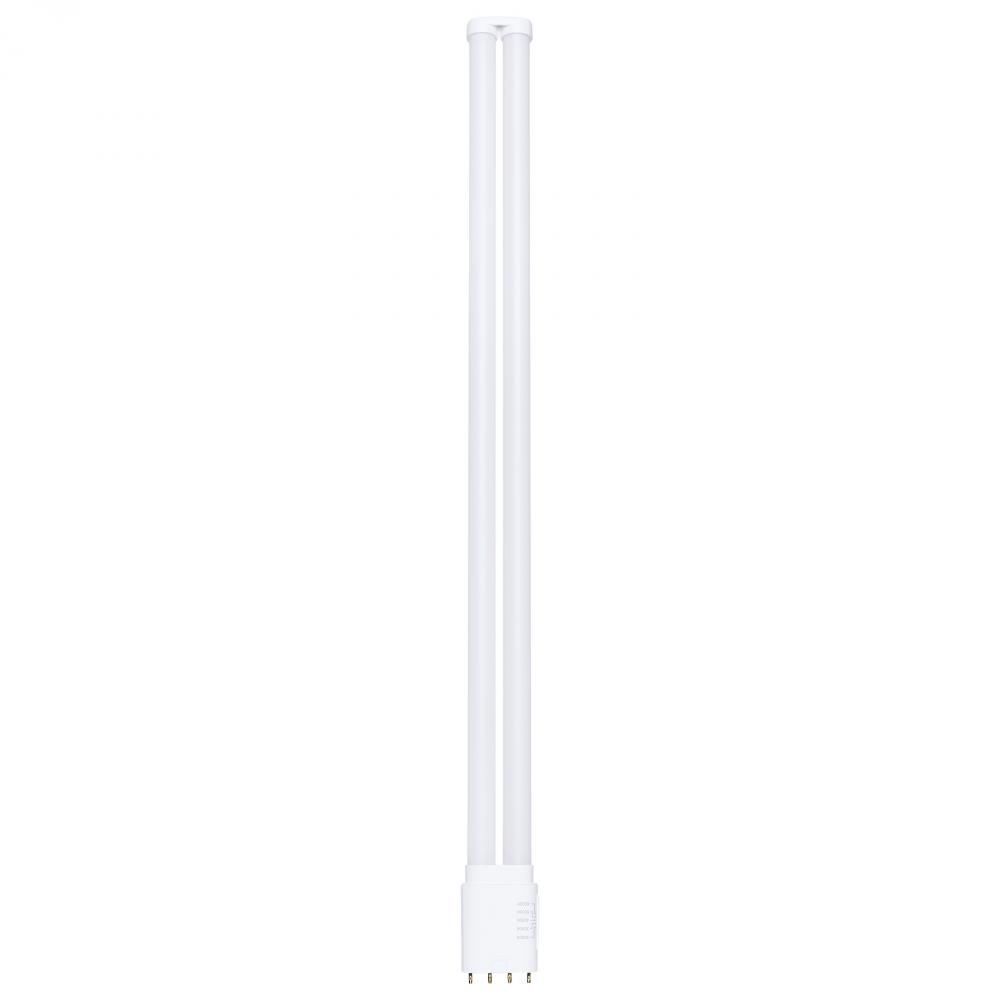

22 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt
Image may not reflect selected features
/vendors/27/large/S18419.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
22 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt (X9P5K)
22 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt
Product Specification
Item #
X9P5K
Dimensions
Width: 1.72"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
PL-L
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T5
Diameter
1.72
EA Length
22.64
Harmonized Codes
8539.52.0091
Length
22.5
Lumens
3000L
Shap Carton Width
1.77
Ship Carton Height
0.98
Ship Weight
0.75
Warranty
5-Years
Weight
0.34
BAA Compliant
No
Ballast Bypass Direct
Dual
Beam Spread
160
Bulb ANSI Base
2G11
Bulb Base
4-Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0227
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Dimming Type
Reverse Phase
Efficacy
136.36 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
5 CCT Selectable
Feature 10
5 Year Warranty
Feature 2
Type A+B Ballast Compatibility
Feature 3
NSF Approved for Food Service and Sensitive Environments
Feature 4
PET Coated Glass Tubing
Feature 5
T5 Construction with 2G11 Base
Feature 6
22W Replaces Traditional 50W Fluorescent Tube
Feature 7
Damp Location Rated
Feature 8
Suitable for Use in Enclosed Fixtures
Feature 9
50,000 Hour Functional Life
Flicker Free
No
Flourescent Equivalent
50W
Has Emergency Battery
No
Housing Color
White
IOT Enabled
No
IP Rating
IP20
Lamp Ballast Type A/B/C
Type A/B
Lamp Filament
LED
Location Rating
Damp
Long Description
SATCO NUVO'S LED PLL Lamp S18419 combines high efficiency with versatile performance for today's commercial lighting needs. Designed with Type A+B ballast compatibility, this 22-watt lamp operates with most electronic ballasts or can be wired for d
Material
Glass / Plastic
Nominal Length
22.5
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Color Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
2
RoHS Compliant
Yes
Romance Copy
SATCO NUVO'S LED PLL Lamps combine high efficiency with versatile performance for today's commercial lighting needs. Designed with Type A+B ballast compatibility, these lamps operate with most electronic ballasts or can be wired for direct line vol
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
22PLL/LED/5CCT/AB
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
No
Watts
22W
Finish Family
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
26
00
/ / 1
($26.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 4170 items available.
