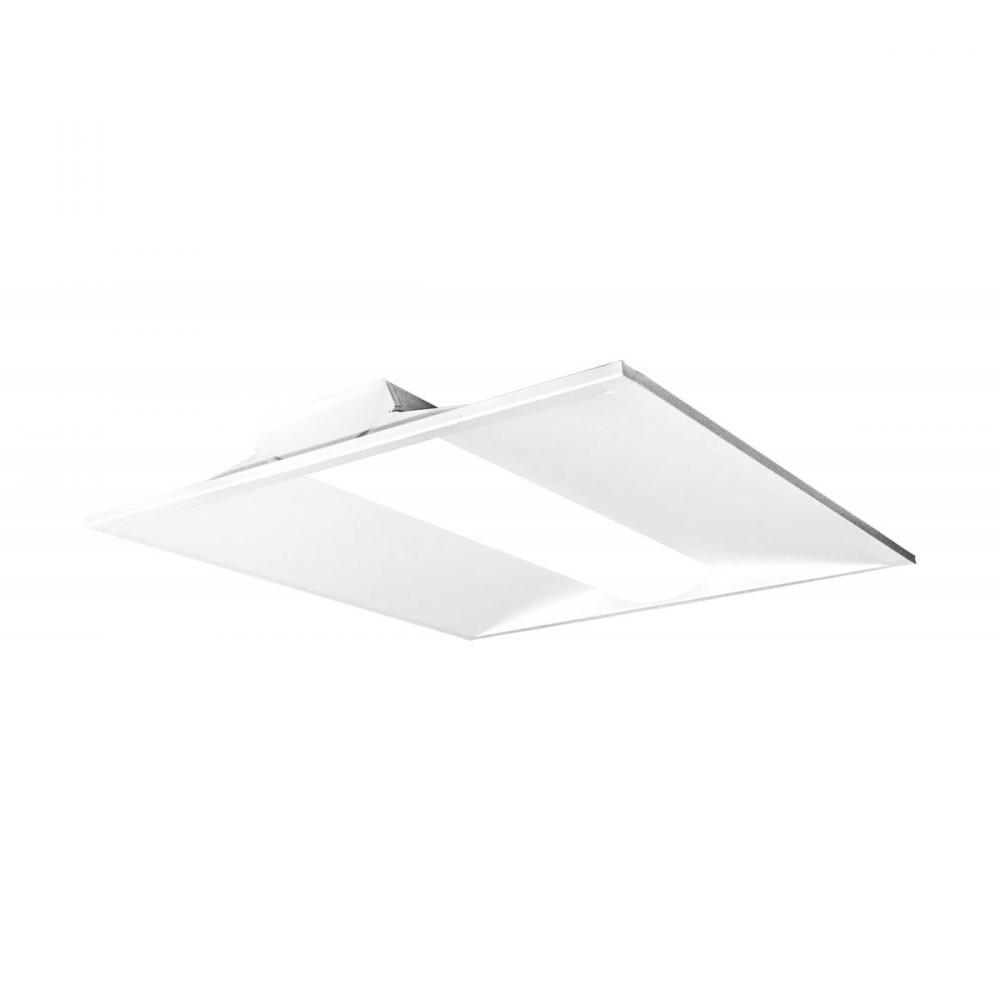

2X2 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; (A34JJ)

2X2 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V

Product Specification

Item #

A34JJ

Dimensions

Height: 2.61"

Width: 23.74"

Additional product details

Category

Troffer

Sub Category

Center Basket

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

25.67

Each Length

3.75

Each Width

25.63

Length

23.74

Lumens

3300L-4400L

Tariff Code

9405.11.6020

Warranty

5 Year Limited - Fixtures

Amps

0.300-0.108/0.350-0.126/0.400-0.144A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Standard

DLC Primary Use

2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube

1.4278

Each Quantity

Efficacy

110.00/110.00/110.00 LPW

FCC Compliant

Yes

Feature 1

Volumetric design

Feature 2

Watts: 30W - 35W - 40W

Feature 3

Lumens: 3300L - 4400L

Feature 4

Color temperature: 3500K/4000K/5000K

Feature 5

Operating temperature: -20C (-4F) to a maximum of 40C (104F)

Finish Family

White

Fixture shape

Square

Flicker Free

Yes

Has Driver

Yes

HID Equiv

70W-100W

IC Rated

Yes

Incandescent Equivalent

125W

Indoor Outdoor

Indoor

IP Rating

IP20

JA8 Compliant

Lens Material

Poly methyl methacrylate (PMMA)

Long Description

SATCO|NUVO's 65-690 is a two foot by two foot single basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for fl

Material

Steel

Mounting Procedure

Ceiling

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Pack Type

Box

Panel Size

2x2

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

A two foot by two foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

2X2 SINGLE BASKET TROFFER

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

<20%

Wattage Selectable

Yes

Weight Lb.

6.06

Finish
