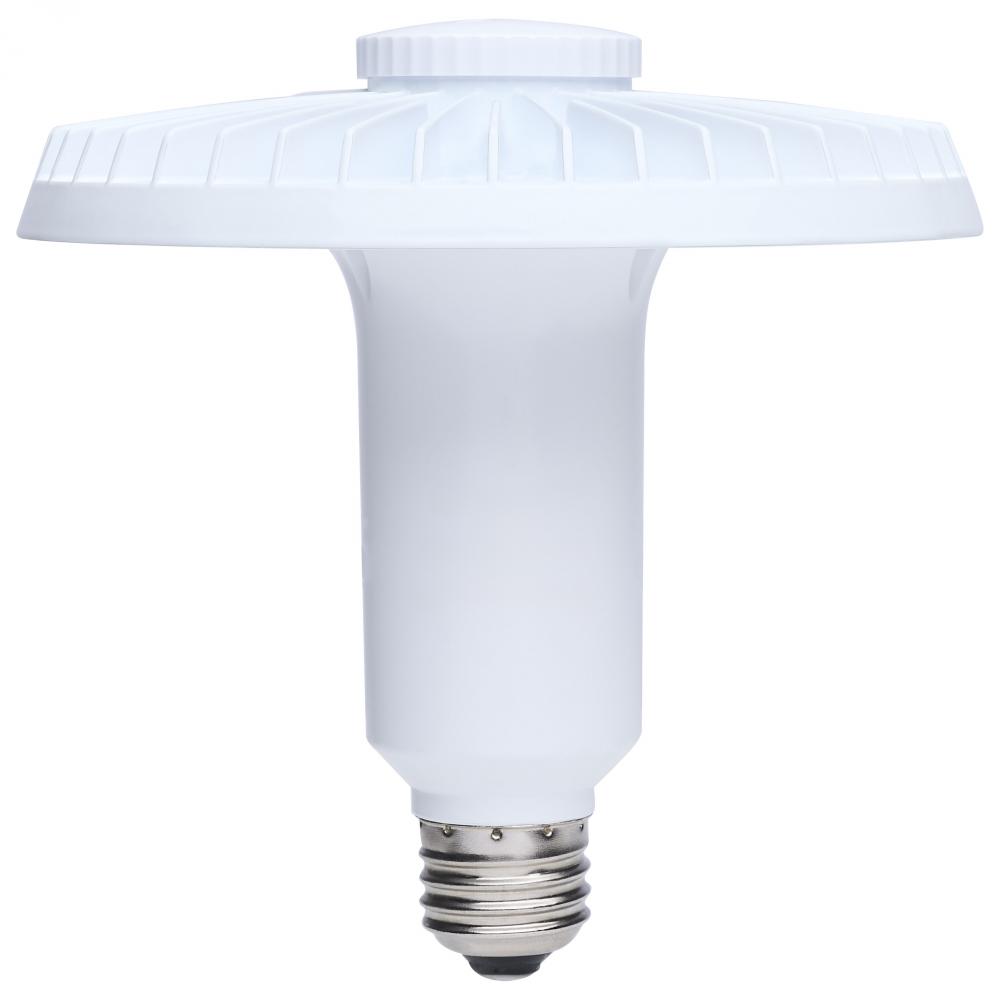

40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 (X9N6Q)
40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 Range Voltage
Product Specification
Item #
X9N6Q
Dimensions
Width: 5.69"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Corncob
Diameter
5.69
EA Length
6.69
Harmonized Codes
8539.52.0091
Length
5.68
Lumens
5800L-6400L/4350L-4800L/2900L-3200L
Shap Carton Width
6.69
Ship Carton Height
7.05
Ship Weight
1.95
Warranty
5-Years
Weight
1.04
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
120
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
Clear
Burning Position
Base Down
Carton Cubic Feet
0.1826
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - >2600 Lumens
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Natural Light
Country Of Origin
Malaysia
CRI
80
Dimmable Function
Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Dimming Type
Step Dimming
DLC Approved
No
Efficacy
145.00/160.00/152.00 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
3 CCT Selectable
Feature 2
20/30/40 Wattage Selectable
Feature 3
Helps Control Light Pollution
Feature 4
Downward Directional Lighting
Feature 5
Enclosed fixture rated
Feature 6
IP65 Watertight Seal Cap
Feature 7
4kV Surge Protection
Feature 8
50,000 Hour Functional Life
Feature 9
5 Year Warranty
Has Camera
No
Has Emergency Battery
No
HID Equivalent
150W-175W
Housing Color
White
Indoor Outdoor
Indoor and Outdoor
IOT Enabled
No
IP Rating
IP65
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Translucent
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Long Description
Illuminate outdoor spaces with SATCO NUVO's S13148 LED post top lamp. Featuring an E26 base, 20/30/40 wattage selection, and 2,900–6,400 lumens, it enhances visibility while reducing light pollution. Improved light shielding and a downward beam minim
Material
Aluminum
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +50C (+122F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Illuminate outdoor spaces using SATCO NUVO's new LED post top lamps, crafted to enhance visibility while helping to reduce light pollution. Designed with improved light shielding and a downward directional beam, these lamps minimize up light and elimin
SDS class
LED_Lamp
Short Description
40HID/L/CCT3/E26/B/U
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
Exempt
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Watts
40W/30W/20W
