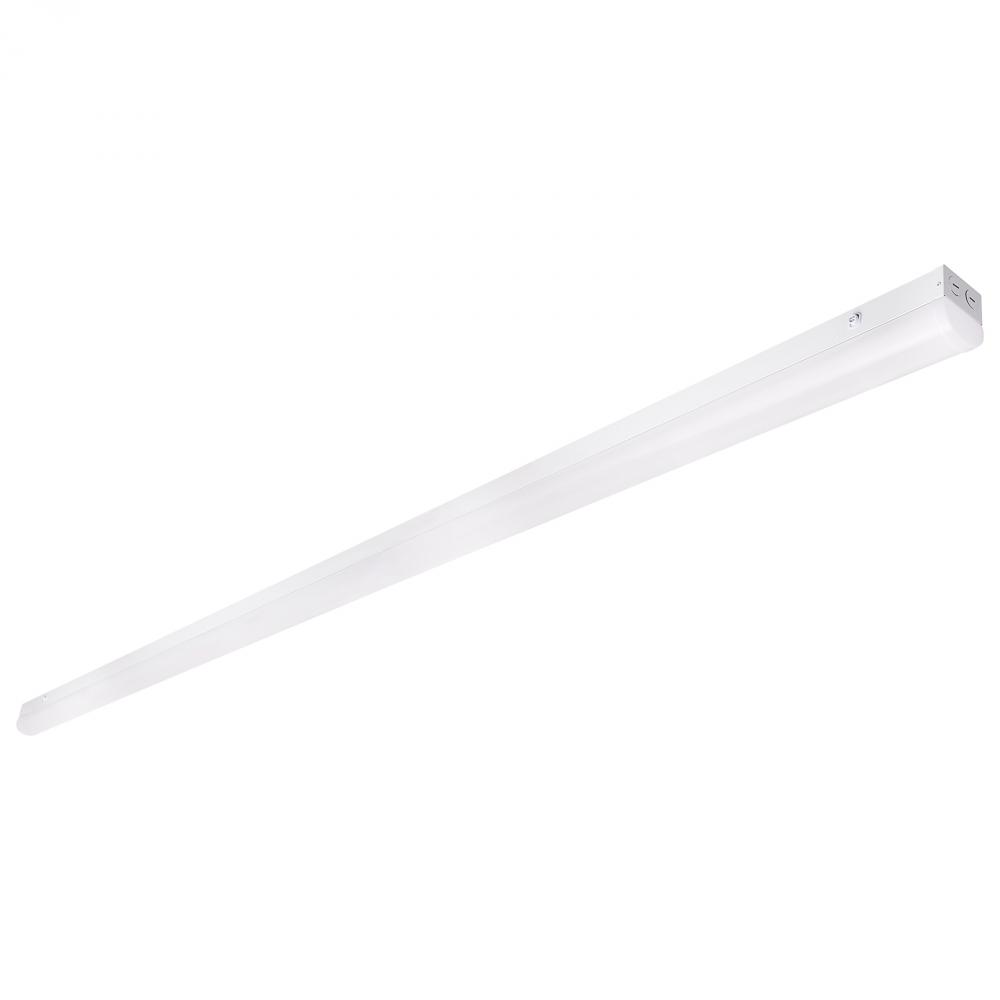

82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish; Microwave (A93YT)

82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish; Microwave Sensor

Product Specification

Item #

A93YT

Dimensions

Height: 3.27"

Width: 2.95"

Additional product details

Category

Linear Strip

Sub Category

Strip Fixture

Additional Info

Other DLC Listing: S-RN5TPJ, Standard, Direct Linear Ambient Luminaires.

Avg Rated Hours

50000

Bulb Type1

LED

Color Temperature

Neutral White to Daylight

Dimmable

Yes-Dimmable

Each Height

5.32

Each Length

98.03

Each Width

5.2

Length

Lumens

10400L-10800L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.683-0.236A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

B_U_G_Rating

B3-U4-G3

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium

DLC Primary Use

Stairwell and Passageway Luminaires

Each Cube

1.5694

Each Quantity

Efficacy

126.83/129.27/131.71 LPW

FCC Compliant

Yes

Feature 1

CCT Selectable

Feature 2

Flicker Free Driver

Feature 3

0-10V Dimmable

Feature 4

Multiple Mounting Options

Feature 5

DLC Premium

Feature 6

Integrated Microwave Sensor

Feature 7

120-347 Voltage - FOR USE IN CANADA

Finish Family

White

Flicker Free

Yes

Has Driver

Yes

HID Equiv

150W

Incandescent Equivalent

550W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

The SATCO|NUVO 65-1703 LED 8-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K - the user can tailor the lighting to their specific needs and prefe

Material

Steel

Mounting Diameter

4.75

Mounting Procedure

Ceiling/Wall

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +60C (+140F)

Pack Type

Box

Photocell

Optional Add-On

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

8' LINEAR STRIP W/SENSOR

Specification Notes

Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Total Harmonic Distortion

10.77%

Wattage Selectable

Weight Lb.

6.84

Finish

Additional options that would change other selections
