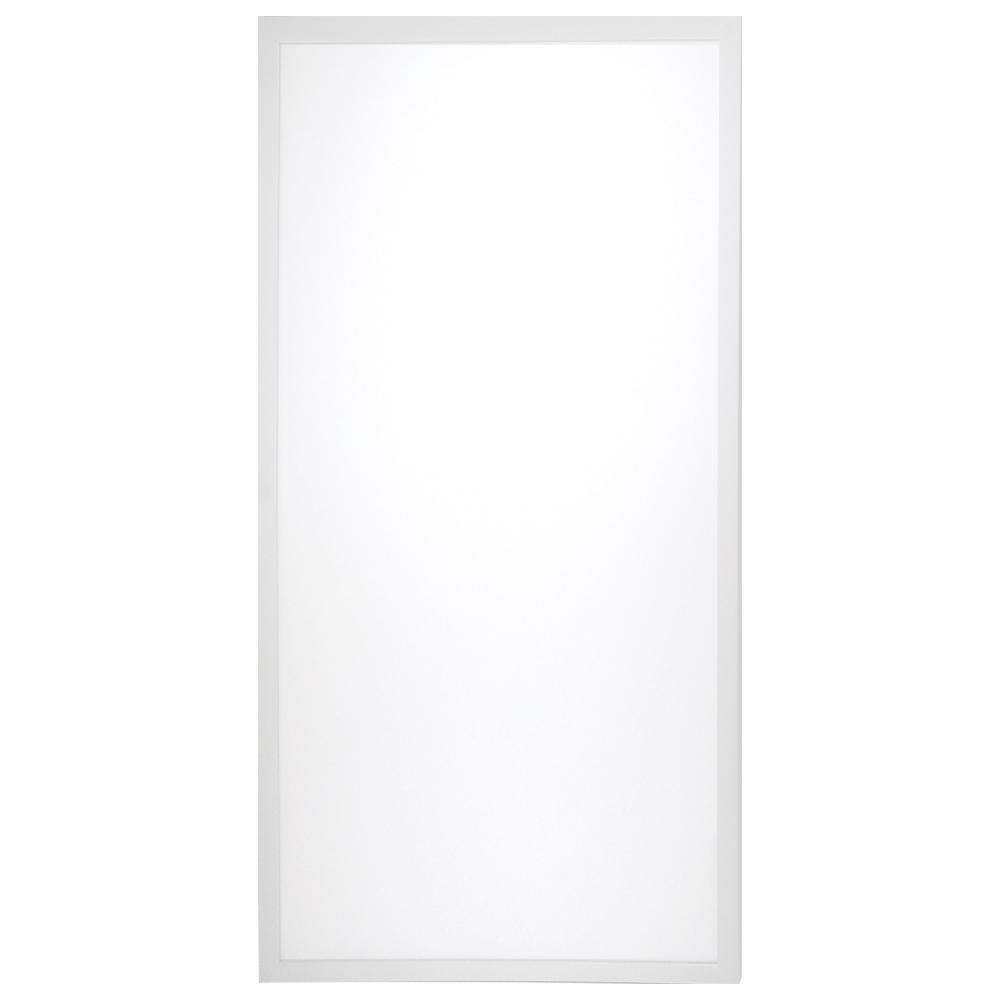

LED Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 120-277 Volt; ColorQuick (A648U)

LED Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 120-277 Volt; ColorQuick Technology; PowerQuick Technology

Product Specification

Item #

A648U

Dimensions

Height: 1.50"

Width: 23.75"

Additional product details

Category

Flat Panel

Sub Category

Backlit

Style

Utility

Additional Info

Driver Specs - VDC38-48V; 630/810/1030mA

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

25.2

Each Length

49.02

Each Width

2.56

Length

47.72

Lumens

3300L-5750L

Tariff Code

9405.11.6020

Warranty

5 Year Limited - Fixtures

Wire Length

3.54

Air Tight

Amps

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Standard

DLC Primary Use

2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube

1.8301

Each Quantity

Efficacy

110.00/113.13/115.00 LPW

FCC Compliant

Yes

Feature 1

3500K/4000K/5000K CCT Selectable

Feature 2

30W/40W/50W Wattage Selectable

Feature 3

Backlit LED Technology

Feature 4

Flicker Free, Even Light Distribution

Feature 5

0-10V Dimmable

Feature 6

50,000 average rated hours of use

Feature 7

DLC Listed

Finish Family

White

Fixture shape

Rectangle

Flicker Free

Yes

IC Rated

Yes

Incandescent Equivalent

150W-175W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

Frost

Lens Material

Poly methyl methacrylate (PMMA)

Long Description

SATCO|NUVO's LED Backlit 2x4 Flat Panel 65-572R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t

Material

Aluminum / Steel

Mounting Procedure

Ceiling

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-17C (+1.4F) to +45C (+113F)

Pack Type

Box

Panel Size

2x4

Photocell

No Photocell

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

2X4 LED BACKLIT FLAT PANEL

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

10.50%

Wattage Selectable

Yes

Weight Lb.

9.039999999999999

Wire Gauge

Wire Temp Rating

80C (176F)

Finish

Additional options that would change other selections
