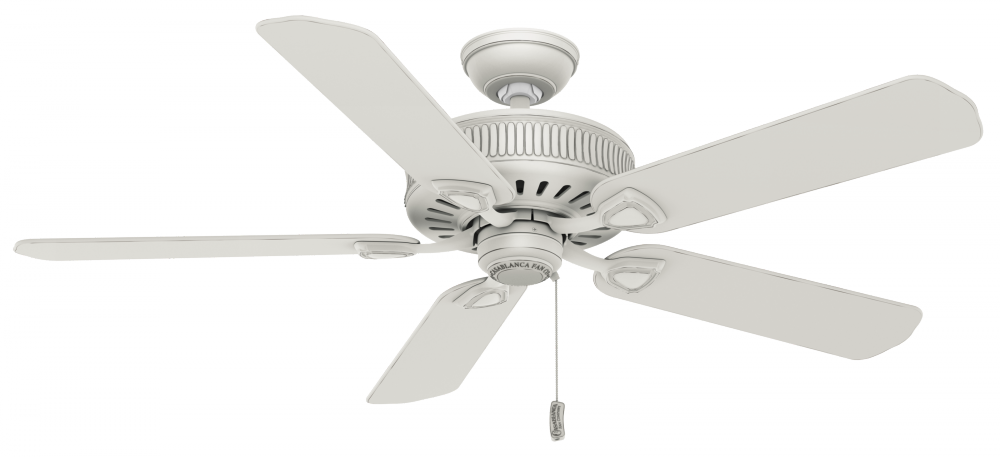

Casablanca 54 inch Ainsworth Cottage White Ceiling Fan and Pull Chain
Image may not reflect selected features
/vendors/4790/large/uscedevveqb6t9qbtboc.png
additional image
additional image
additional image
additional image
Casablanca 54 inch Ainsworth Cottage White Ceiling Fan and Pull Chain (406VGEP)
It's all in the details. Meticulous columns grace the motor housing to create a sophisticated, timeless look making the Ainsworth the ideal centerpiece for your french country decor style. Drawing inspiration from ornamental design in classic architectural sheet metal, the Ainsworth boasts a traditional style with a simple, yet tasteful touch for a truly distinguished look.
Energy Information at High Speed
Airflow
3431 Cubic Feet per Minute
Electricity Rate
46 Watts (excluded lights)
Airflow Efficiency
74 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
406VGEP
Dimensions
Width: 54.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans
Voltage
100-120
Number of Blades
5 Blades
Category
Fan
Finish
Cottage White
Style
Traditional
Option
ETL Approved
Family
Ainsworth
Voltage
120 V/60 Hz
Air Flow CFM
3431
Air Flow Efficiency
74
Amperage
0.66
Blade Finish
Cottage White
Blade Pitch
13
Blade Span
54
Blades Included
Yes
Canopy
Height- 2.75, Width- 6.49
Designer
Ainsworth
Down Rod Included
2 , 3
Electricity Used
46
Light Kit Included
No
Motor Fan Speed
4
Motor RPM
174
Motor Size
172 x 20
Motor Type
Direct Drive
Pull Chain Included
Yes
Ship Carton Height
9.5
Ship Carton Length
13.9
Ship Carton Width
21.3
Ship Weight
24.2
Sold By
EA
Warranty
Limited Lifetime Motor Warranty
Weight
20.56
6 Square (ID)
Formal Traditional
Airflow
3431
Amps High
0.66
Amps Low
0.16
Amps Medium
0.49
Batteries Included
No
Blade Material
Plywood
Blade Overlay
Veneer
Blade Pitch Feature
13 degree blade pitch optimized to ensure ideal air movement and peak performance
Blade Side 1 Finish
Cottage White
Blade Side 2 Finish
Cottage White
Blade Side Feature
5 Cottage White blades included
Bulb Included
No
Can be used without Lightkits
No
Canopy Mounting Feature
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description
Standard Platform
Carton Cubic Feet
1.63
Ceiling to Bottom of Fan
46.1
CFM High
6017
CFM Low
1502
CFM Medium
4931
Country of Origin
CN
Dim A - Angled - Ceiling to Bottom of Fan
46.1
Dim A - Standard - Ceiling to Bottom of Fan
13.11
Dim A Angled Ceiling To Bottom Of Fan
46.10
Dim A Flush Ceiling To Bottom Of Fan
12.11
Dim A Standard Ceiling To Bottom Of Fan
13.11
Dim B - Angled - Ceiling to Bottom of Fan Blade
44.73
Dim B - Flush - Ceiling to Bottom of Fan Blade
10.73
Dim B - Standard - Ceiling to Bottom of Fan Blade
11.73
Dim B Angled Ceiling To Bottom Of Fan Blade
44.73
Dim B Flush Ceiling To Bottom Of Fan Blade
10.73
Dim B Standard Ceiling To Bottom Of Fan Blade
11.73
Dim C - Standard - Ceiling to Bottom of Canopy
2.75
Dim C Standard Ceiling To Bottom Of Canopy
2.75
Dim D - Standard - Width of Fan Body
12.41
Dim D Standard Width Of Fan Body
12.41
Dim E - Standard - Canopy Width
6.49
Dim E Standard Canopy Width
6.49
Dim G - Standard - Height of Motor Housing
5.3
Dim G Standard Height Of Motor Housing
5.30
Dips on Receiver
No
Downrod Feature
Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
Dry Rated
Yes
Estimated Yearly Energy Cost
12
ETL Approved
Yes
Five Minute Fan
No
Housing Feature
Cottage White finish
Housing Finish
Cottage White
LED Indicator on Transmitter
No
LED Light Kit
No
Light Spec
No Light Kit Included
Location Feature
Rated for indoor spaces only
Motor Type Feature
Reversible, 4-speed Direct Drive™ motor provides unparalleled power, silent performance, and reliability over decades of daily use
Mounting Options
Installer's Choice® three position mounting system allows for standard, low or angled mounting
Mounting Options Friendly Value
Installer's Choice® three position mounting system allows for standard, low or angled mounting
No Light Cap Included
No
No-Light Cap Included
No
Number of Blades
5
Pop Lock Blades
No
Pop-Lock Blades
No
Product Portfolio
Casablanca
Pull Chain Feature
Includes pull chains for quick and easy on/off and speed adjustments
Receiver Included
No
Reversable Motor
Yes
Reversible Blades
Yes
Reversible Motor
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
RPM High
174
RPM Low
37
RPM Medium
131
RPM Medum
131
Safety Rating
ETL
Serenity Speed Feature
Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood
Shipping Cubic Feet
1.63
SIMPLEconnect
No
Softlights
No
Speeds
4
Speeds Feature
4 Speeds
Stainless Steel Hardware
No
Sure Speed
No
SureSpeed
No
Tunable White
No
Twist Lock Glass
No
Ultra Low Profile
No
Uplight Downlight Separate Control
No
Warranty Feature
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business


Other Details:
  • 13 degree blade pitch optimized to ensure ideal air movement and peak performance
  • 4 Speeds
  • 5 Cottage White blades included
  • Cottage White finish
  • Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood
  • Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
  • Includes pull chains for quick and easy on/off and speed adjustments
  • Installer's Choice® three position mounting system allows for standard, low or angled mounting
  • Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
  • Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
  • Rated for indoor spaces only
  • Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
  • Reversible, 4-speed Direct Drive™ motor provides unparalleled power, silent performance, and reliability over decades of daily use
Down Rod Included
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
568
00
/ / 1
($568.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unavailable.
More In This Collection From Ainsworth
