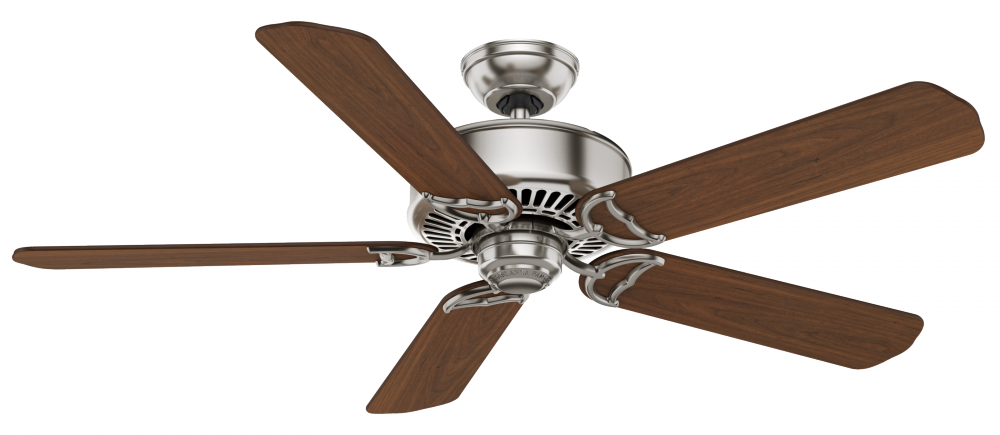

Casablanca 54 inch Panama ENERGY STAR® Brushed Nickel Ceiling Fan and Handheld Remote
Image may not reflect selected features
/vendors/4790/large/pzo93rcnkncj40wislsn.png
additional image
additional image
Casablanca 54 inch Panama ENERGY STAR® Brushed Nickel Ceiling Fan and Handheld Remote (406VHEY)
Rich in history and tradition, the Panama is a true classic. Inspired by evolutions in the automobile industry, this product has been revamped and revitalized while keeping the foundation and integrity that makes it one of our best ceiling fans. This traditional fan boasts superior air circulation driven by an ultra-powerful six-speed DC motor for unparalleled power, silent performance, and reliability over decades of daily use. The original five-bladed fan, the Panama DC motor ceiling fan remains as timeless as ever.

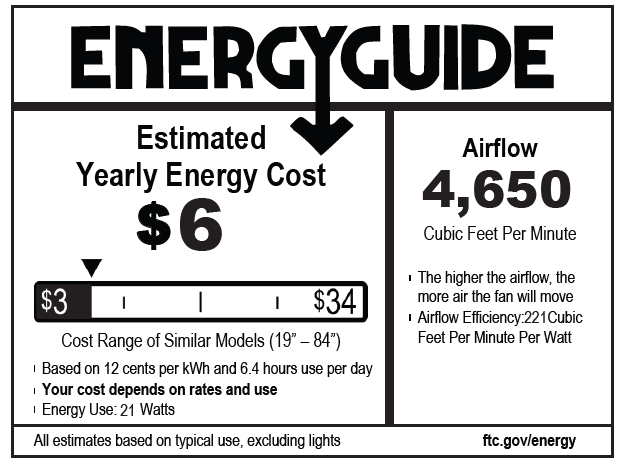

Energy Information at High Speed
Airflow
4650 Cubic Feet per Minute
Electricity Rate
21 Watts (excluded lights)
Airflow Efficiency
221 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
406VHEY
Dimensions
Width: 54.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans
Style
Industrial
Voltage
100-120
Number of Blades
5 Blades
Category
Fan
Finish
Brushed Nickel
Style
Farmhouse , Heritage , Industrial , Rustic , Traditional
Option
ETL Approved
Family
Panama
Voltage
120 V/60 Hz
Air Flow CFM
4650
Air Flow Efficiency
221
Amperage
0.768
Blade Finish
Burnt Walnut , Walnut
Blade Pitch
13
Blade Span
54
Blades Included
Yes
Canopy
Height- 2.75, Width- 6.49
Designer
Panama
Down Rod Included
2 , 3
Electricity Used
21
Light Kit Included
No
Motor Fan Speed
6
Motor RPM
186
Motor Size
DC
Motor Type
DC
Pull Chain Included
No
Remote Control Included
Yes
Ship Carton Height
11.1
Ship Carton Length
14.4
Ship Carton Width
23.1
Ship Weight
21.7
Sold By
EA
Warranty
Limited Lifetime Motor Warranty
Weight
18.29
3 Way Light Switch
No
6 Square (ID)
Casual Traditional
Airflow
4650
Amps High
0.77
Amps Low
0.28
Amps Medium
0.66
Audible Feedback Receiver
No
Batteries Included
Yes
Battery Size
CR2032
Blade Material
Plywood
Blade Overlay
Veneer
Blade Pitch Feature
13 degree blade pitch optimized to ensure ideal air movement and peak performance
Blade Side 1 Finish
Walnut
Blade Side 2 Finish
Burnt Walnut
Blade Side Feature
5 Walnut / Burnt Walnut reversible blades included
Bulb Included
No
Can be used without Lightkits
No
Canopy Mounting Feature
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description
Standard Platform
Carton Cubic Feet
2.14
Ceiling to Bottom of Fan
46.29
CFM Extra Low
1969
CFM High
6878
CFM Low
1438
CFM Medium
4778
CFM Medium High
5630
CFM Medium Low
4703
CFM Watt Extra Low
532
CFM Watt High
206
CFM Watt Low
130
CFM Watt Medium
80
CFM Watt Medium High
275
CFM Watt Medium Low
345
Control Type Included
Handheld Remote
Country of Origin
CN
Dim A - Angled - Ceiling to Bottom of Fan
46.29
Dim A - Standard - Ceiling to Bottom of Fan
13.29
Dim A Angled Ceiling To Bottom Of Fan
46.29
Dim A Flush Ceiling To Bottom Of Fan
12.29
Dim A Standard Ceiling To Bottom Of Fan
13.29
Dim B - Angled - Ceiling to Bottom of Fan Blade
44.69
Dim B - Flush - Ceiling to Bottom of Fan Blade
10.69
Dim B - Standard - Ceiling to Bottom of Fan Blade
11.69
Dim B Angled Ceiling To Bottom Of Fan Blade
44.69
Dim B Flush Ceiling To Bottom Of Fan Blade
10.69
Dim B Standard Ceiling To Bottom Of Fan Blade
11.69
Dim C - Standard - Ceiling to Bottom of Canopy
2.75
Dim C Standard Ceiling To Bottom Of Canopy
2.75
Dim D - Standard - Width of Fan Body
12
Dim D Standard Width Of Fan Body
12.00
Dim E - Standard - Canopy Width
6.49
Dim E Standard Canopy Width
6.49
Dim G - Standard - Height of Motor Housing
4.43
Dim G Standard Height Of Motor Housing
4.43
Dips on Receiver
No
Downrod Feature
Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
Dry Rated
Yes
Estimated Yearly Energy Cost
5
ETL Approved
Yes
Five Minute Fan
No
Housing Feature
Brushed Nickel finish
Housing Finish
Brushed Nickel
Included Control Feature
Includes Handheld Remote for easy speed and lighting adjustment from anywhere in the room
LED Indicator on Transmitter
No
LED Light Kit
No
Light Spec
No Light Kit Included
Location Feature
Rated for indoor spaces only
Max Watt
32
Motor Type Feature
Reversible, 6-speed DC
Mounting Options
Installer's Choice® three position mounting system allows for standard, low or angled mounting
Mounting Options Friendly Value
Installer's Choice® three position mounting system allows for standard, low or angled mounting
No Light Cap Included
No
No-Light Cap Included
No
Number of Batteries
1
Number of Blades
5
Pop Lock Blades
No
Pop-Lock Blades
No
Product Portfolio
Casablanca
Receiver Included
Yes
Receiver Location
Motor
Reversable Motor
Yes
Reversible Blades
Yes
Reversible Motor
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
RPM Extra Low
50
RPM High
186
RPM Low
45
RPM Medium
133
RPM Medium High
159
RPM Medium Low
131
RPM Medum
133
Safety Rating
ETL
Shipping Cubic Feet
2.14
SIMPLEconnect
No
Softlights
No
Speeds
6
Speeds Feature
6 Speeds
Stainless Steel Hardware
No
Sure Speed
No
SureSpeed
No
Transmitter Type
Remote Handheld
Tunable White
No
Twist Lock Glass
No
Type of Batteries
Lithium
Ultra Low Profile
No
Uplight Downlight Separate Control
No
Warranty Feature
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Watts Extra Low
3
Watts High
32
Watts Low
11
Watts Medium
59
Watts Medium High
20
Watts Medium Low
13


Other Details:
  • 13 degree blade pitch optimized to ensure ideal air movement and peak performance
  • 5 Walnut / Burnt Walnut reversible blades included
  • 6 Speeds
  • Brushed Nickel finish
  • Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
  • Includes Handheld Remote for easy speed and lighting adjustment from anywhere in the room
  • Installer's Choice® three position mounting system allows for standard, low or angled mounting
  • Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
  • Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
  • Rated for indoor spaces only
  • Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
  • Reversible, 6-speed DC
