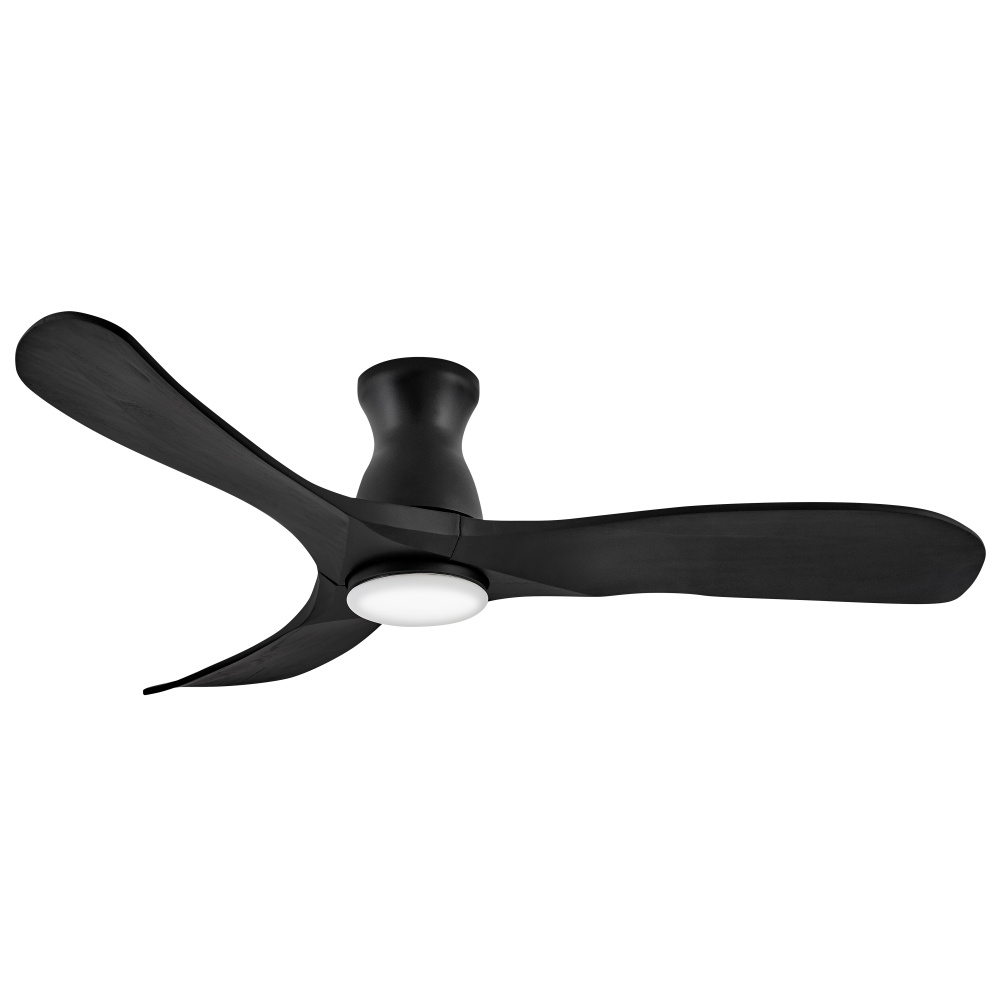

Swell Flush Illuminated 56" LED Smart Fan
Image may not reflect selected features
/vendors/87/large/903456fbb-ldd_swellflush.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
Swell Flush Illuminated 56" LED Smart Fan (9WXXV)
Sophisticated and distinct, Swell Flush Illuminated perfectly sets the scene in contemporary spaces without sacrificing functionality - featuring a low-profile silhouette with integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Downloads
Product Specification
Item #
9WXXV
Dimensions
Height: 12.75"
Width: 56.00"
Length: 56.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Modern
Option
Damp Rated
Category
Fan
Finish
Matte Black
Style
Modern
Family
Swell
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
7329
Amperage
0.51
Blade Finish
Matte Black
Blade Pitch
14
Blade Span
56
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
01/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DCS-30NS
Motor Type
DC
Ship Carton Height
11.3
Ship Carton Length
32.6
Ship Carton Width
15.4
Ship Weight
30.8
Vendor Ship Method
Parcel
Weight
28.6
Airflow Avg
4946
AMPS Avg
0.29
Avg Energy Use
24
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
8.25
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
202
Efficiency High
199
Energy Cost Avg
7
Energy Cost High
10.32
Energy Use High
36.8
Fan Control
Yes
Flush Mount Fan
Yes
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
105
RPMS High
159
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
1.27
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Bold silhouette with dramatic details creates a modern statement
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item includes a light kit cover
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
Finish
Additional options that would change other selections
Blade Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
779
00
/ / 1
($779.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 157 items available.
